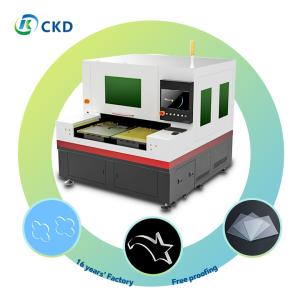

Product Description:
Our Laser Glass Cutting Machine is equipped with a 1064nm wavelength laser, which ensures that your cutting job is completed with utmost precision. The machine has a minimum cutting burr of ≤5μm, making it one of the best options available in the market.
The Laser Glass Cutting Machine comes with a range of safety features, including an Emergency Stop Button, Protective Cover, and Laser Safety Windows. Additionally, the machine has an automatic power-off feature when the cover is open, ensuring safe operation at all times.
In terms of maintenance requirements, we recommend an optical alignment every 200 hours and coolant replacement every 1000 hours. We also offer regular remote diagnostics and software updates to ensure that your machine is always in top condition.
Investing in our Laser Glass Cutting Machine means that you can be sure that your cutting job will be completed efficiently and with the highest level of accuracy. So why wait? Get in touch with us today to find out more about our Stained Glass Cutting Machine and how it can benefit your business.
Features:
- Product Name: Laser Glass Cutting Machine
- Material: Glass
- Cutting Width: 0.03-25mm
- Working Frequency: 50HZ/60HZ
- Cutting Precision : ±0.01mm
- Environmental Conditions: Works Best In Temperatures Between 15°C And 30°C, With 20%-80% Relative Humidity, Suitable For Cleanrooms Or Industrial Environments
- Other Keywords: Stained glass cutting machine, Fiber Laser Cutting Machine, colored glass cutting machine
Technical Parameters:
| Brand |
CKD |
| Product |
Small glass laser cutting machine |
| Model |
Single Table Glass Cutting Machine |
| Splitting laser source Power |
150W (options: 250W/350W) |
| Splitting laser source Pulse Frequency |
1-100kHz |
| Applicable Materials |
Ultra Clear Class, Plain White Glass High Borosilicate Glass, Quartz Glass Optical Glass, Cover Glass, Camera Glass Cover, Etc. Phone Glass Cover, Car Glass, Camera Glass Cover, Etc. LCD Screen, K9 Glass, Filter Cutting, Mirror Cutting, Etc. |
| Acceleration |
1G |
| Cutting Speed |
Adjustable From 0-500mm/s |
| Cutting Width |
0.03-25mm |
| Dimension |
2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm |
| Minimum Cutting Burr |
≤5μm |
| Drive Motor |
XY Linear Motor + Optical Grating Scale |
This optical glass Laser Cutting Machine is designed to efficiently cut a variety of materials with precision and minimal cutting burr. With a cutting width of 0.03-25mm, acceleration of 1G, and adjustable cutting speed up to 500mm/s, this machine is suitable for a wide range of applications. The compact size and single table design make it ideal for small production facilities or workshops.
Applications:
<10ps, it is capable of producing small, intricate cuts that other machines simply cannot match.
Whether you are looking to create custom glass designs for home decor, automotive applications, or other specialized uses, the CKD Laser Glass Cutting Machine is the perfect tool for the job. And with its heavy-duty wheels and locking mechanisms, it is easy to move and reposition as needed.
Looking for a small glass laser cutting machine? The CKD-DP6070S-50E and CKD-SP6070S-50E models are both excellent options. They are compact and lightweight, yet powerful enough to handle even the most intricate cutting tasks. And with their XY linear motor and grating ruler drive motors, they provide exceptional accuracy and speed.
Need a thick glass laser cutting machine? The CKD-DP6070C-80TE and CKD-SP6070C-80TE models are both designed to handle even the toughest cutting jobs. With their high-powered lasers and heavy-duty construction, they are perfect for cutting thick glass and other materials.
Whether you are a professional glass cutter or a hobbyist looking to create unique designs, the CKD Laser Glass Cutting Machine is the perfect tool for the job. And with its ISO CE certification, you can be sure that you are getting a high-quality product that is built to last.
